NEW PRODUCT ALERT: Air-conditioning recycling

One of a kind

The ATN 4 BK-PT is designed for the degassing of all types of industrial cooling devices. With a condensing capacity of 60 KG refrigerant per hour it is the biggest machine of its kind. The demand for large scale degassing of air-conditioning units, vending machines and other industrial cooling and freezing equipment is increasing. With the new ATN 4 BK-PT it is possible to degas faster than the gas can evaporate. The extra heating unit speeds up the process of evaporation.

The condensing capacity of the ATN 4 BK-PT is 60 KG per hour and that is enough to maximize the capacity of your degassing facility. It is also possible to degas the units in batches in order to reclaim the refrigerant as a mono-stream for reuse. By pushing a button on the display of the machine you can change the tank after the machine has emptied itself. Up to four tanks on four weight scales can be connected to the machine. Each for a specific type of refrigerant. Four drill-heads enable the operator to de-oil the compressor in the fastest possible way.

An operator is required to make the connection between the cooling device and the ATN 4 BK-PT. After the connection is established the machine takes over the control of the degassing cycle. The liquefied gas is conveyed into the designated tank. The cooling device will be vacuumed in order to reach the highest possible efficiency for the degassing. For safety reasons the drill-head can only be used in combination with the piercing device or the service connections of the cooling device.

The machine is designed for all types of refrigerant (for the draining of NH3 there is a separate machine).

Pictures

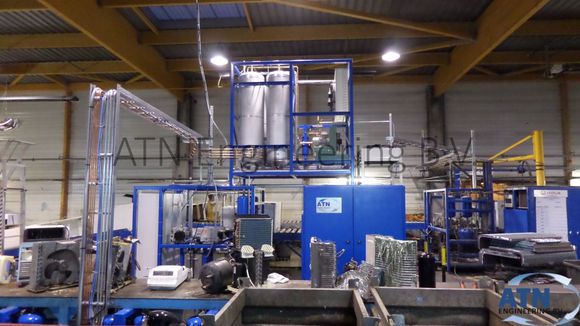

Air-conditioning front image

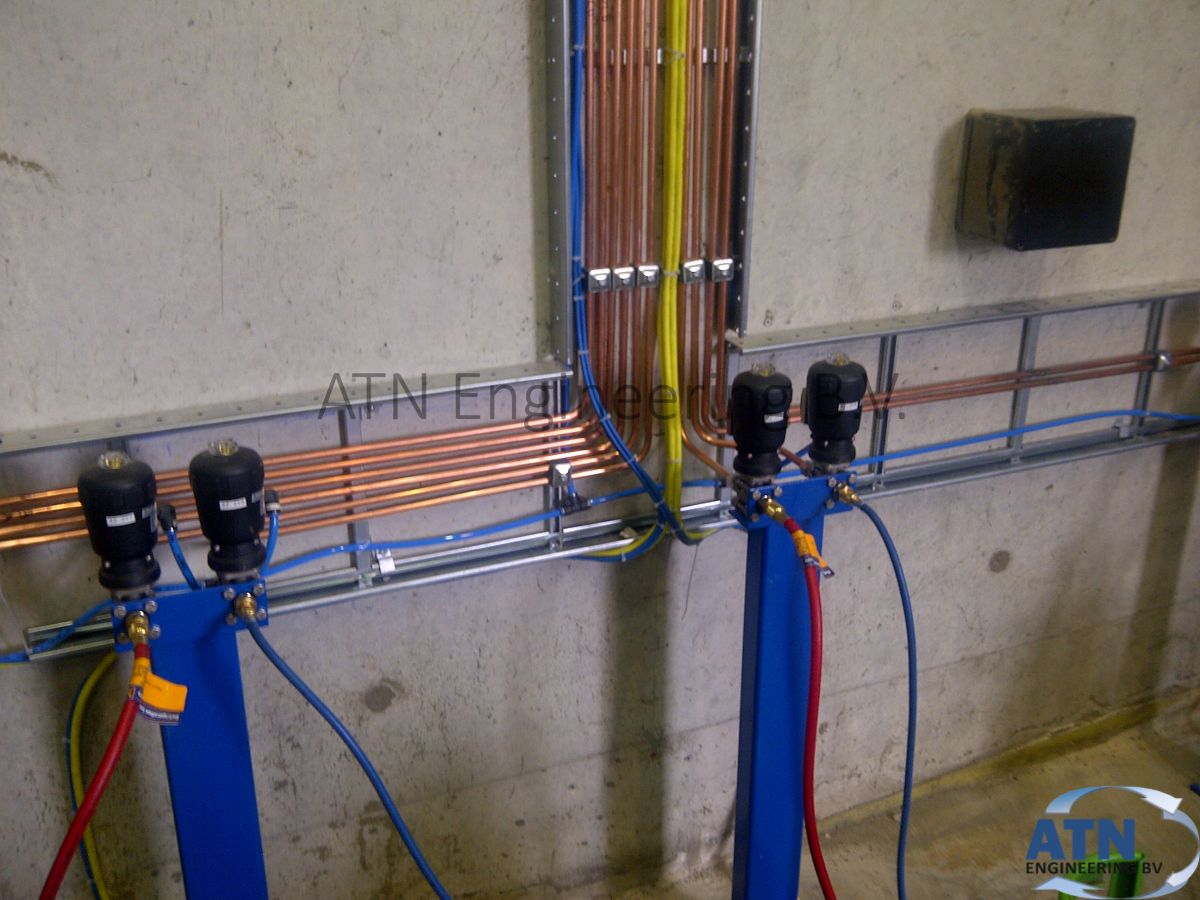

Drain place with drill-heads and piercing-pliers for fridges and airco's

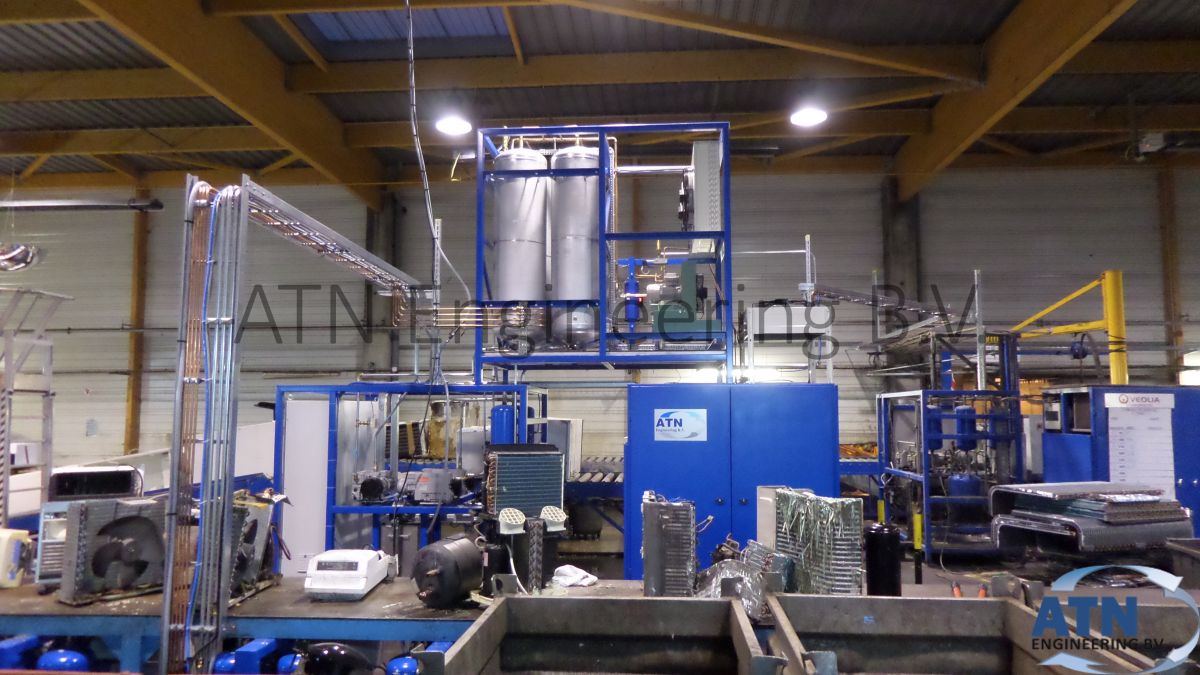

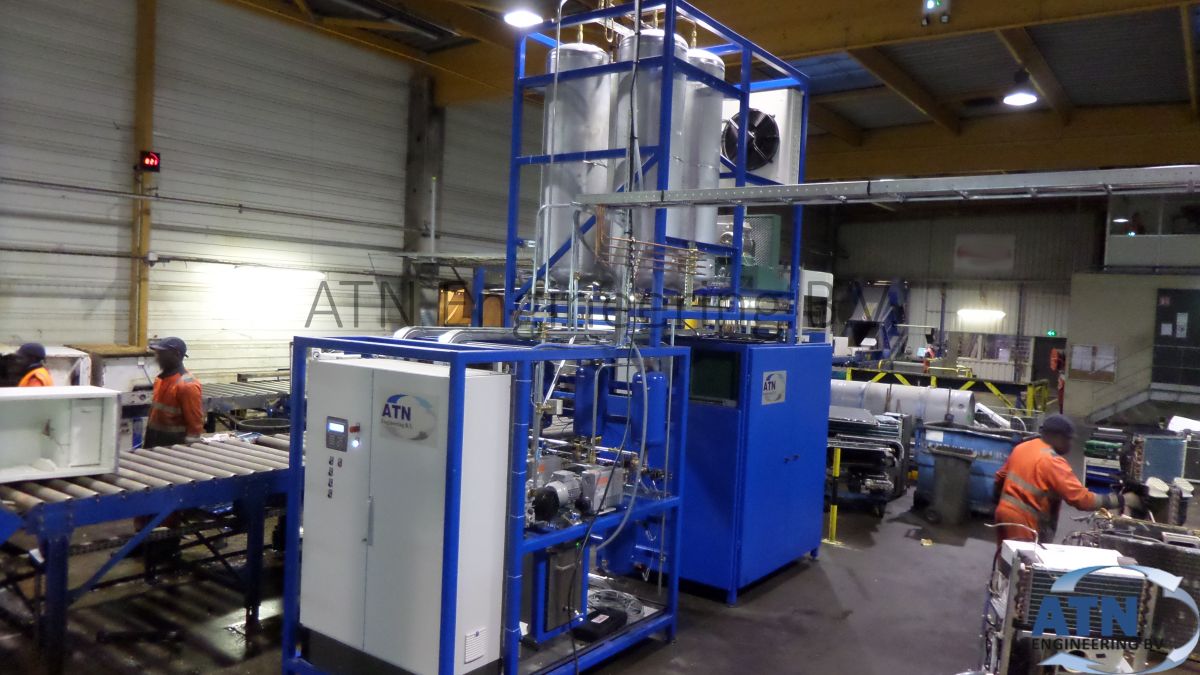

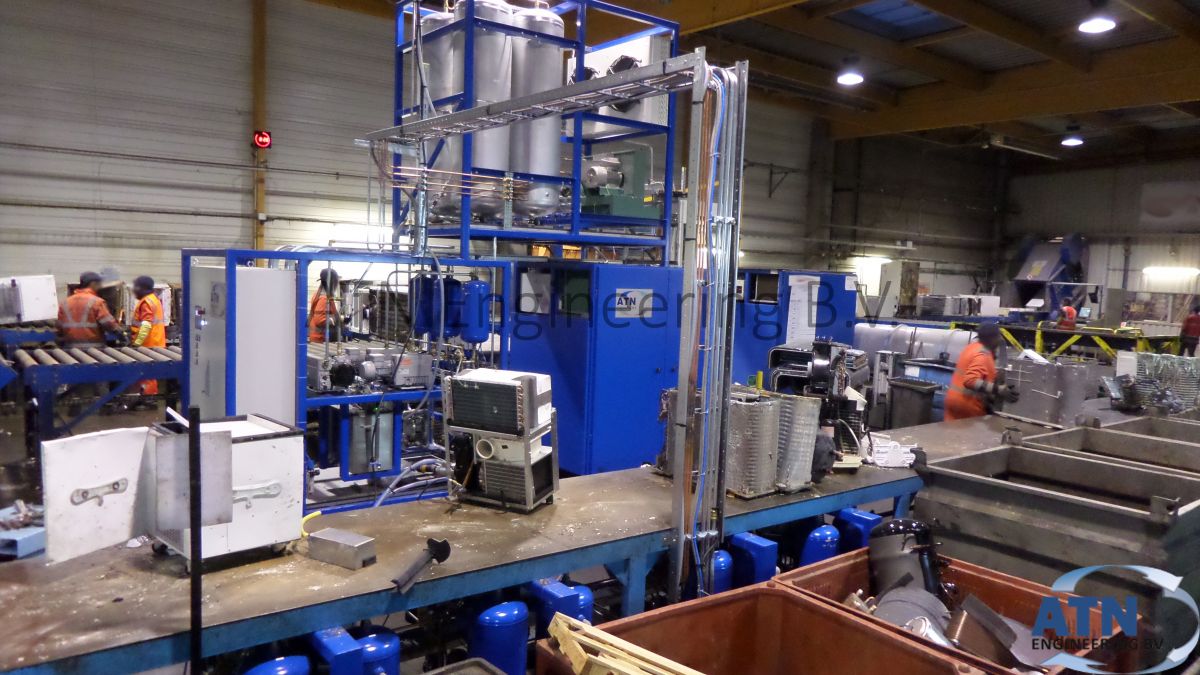

Refrigerator recycling machine in the back with roller conveyors that carry fridges.

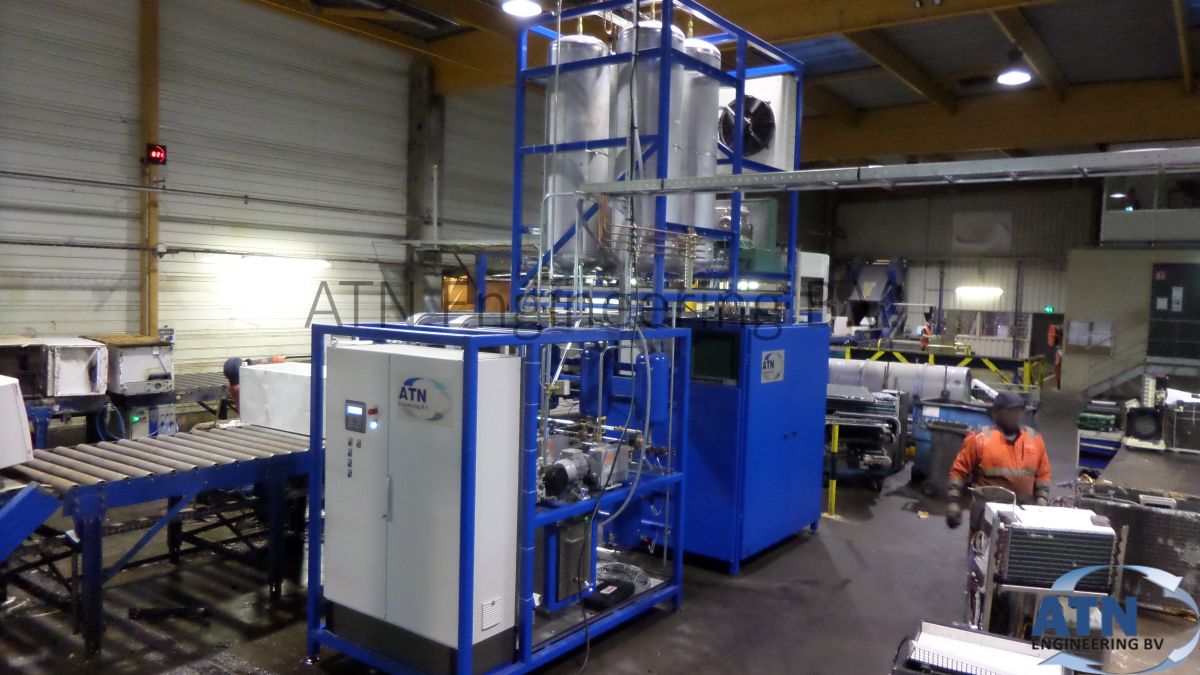

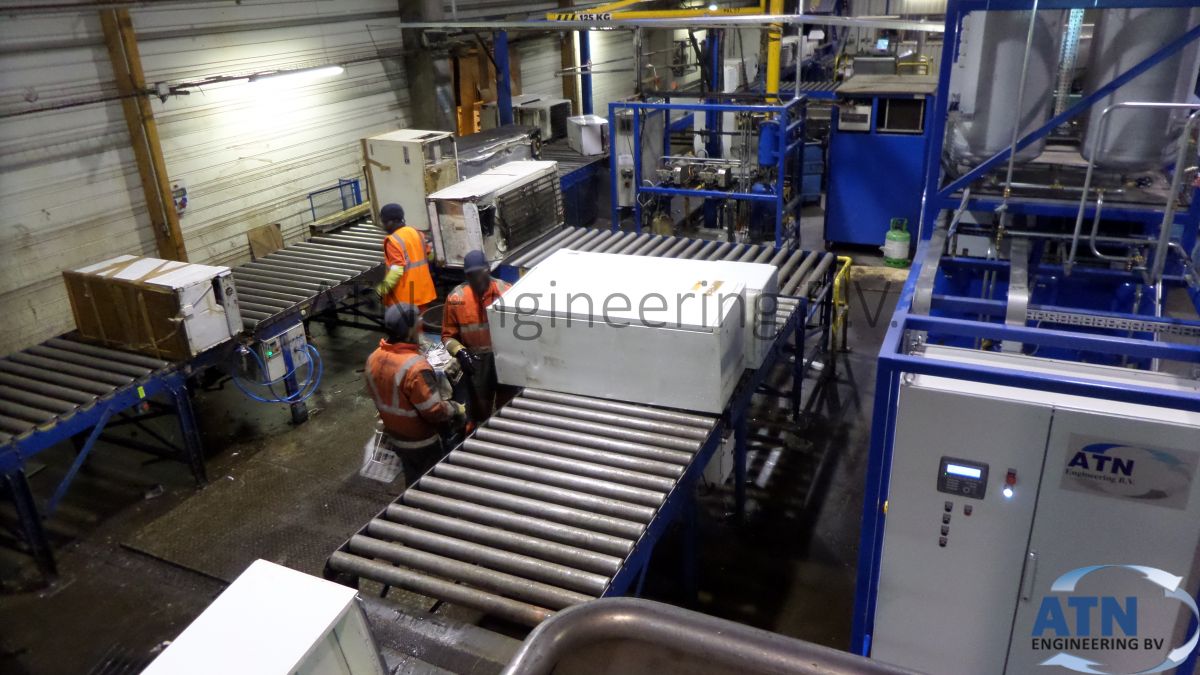

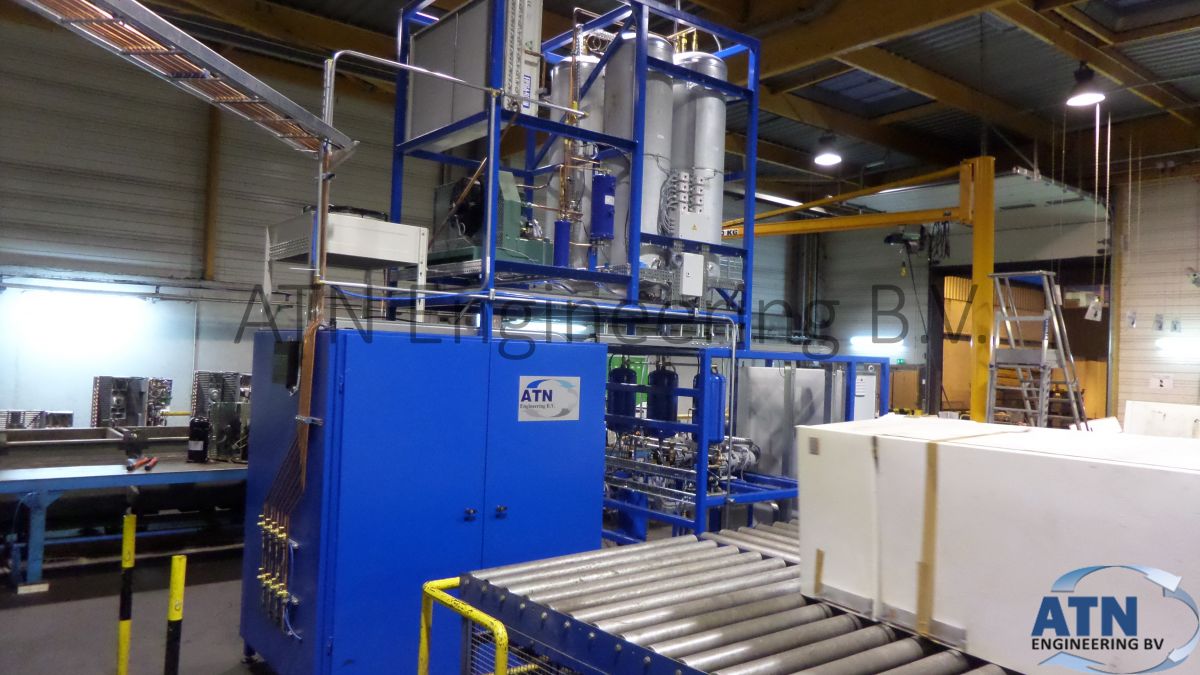

Air-conditioning machine with roller conveyors that carry fridges
Air-conditioning machine sideshow

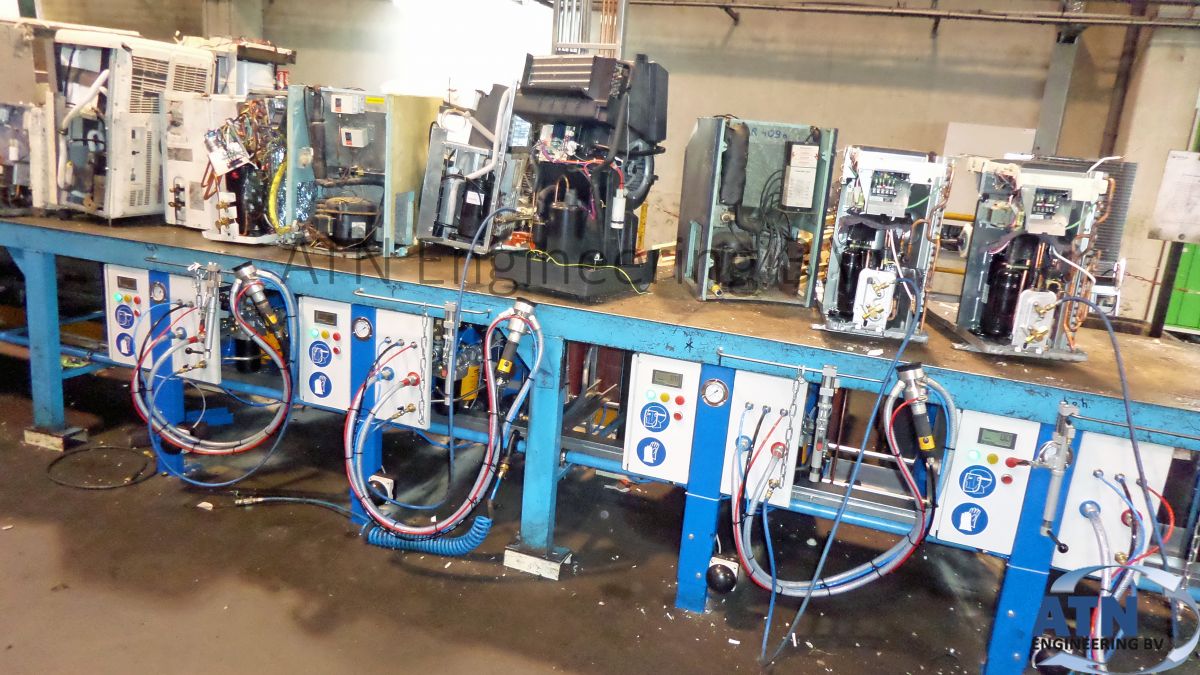

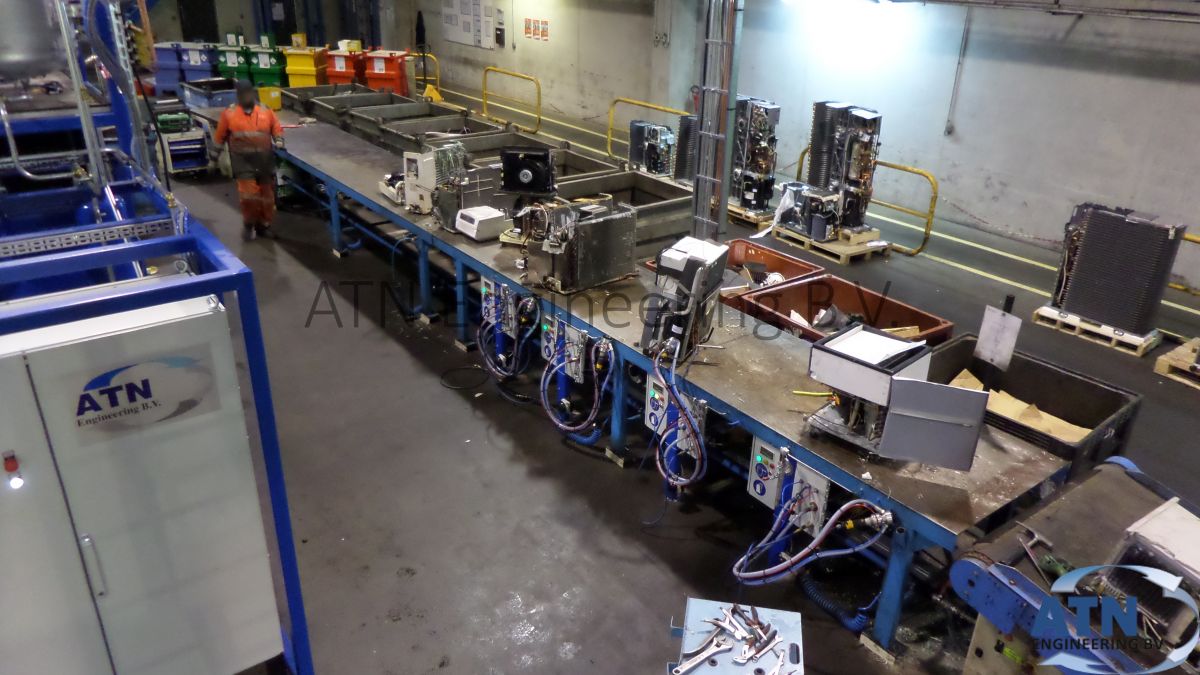

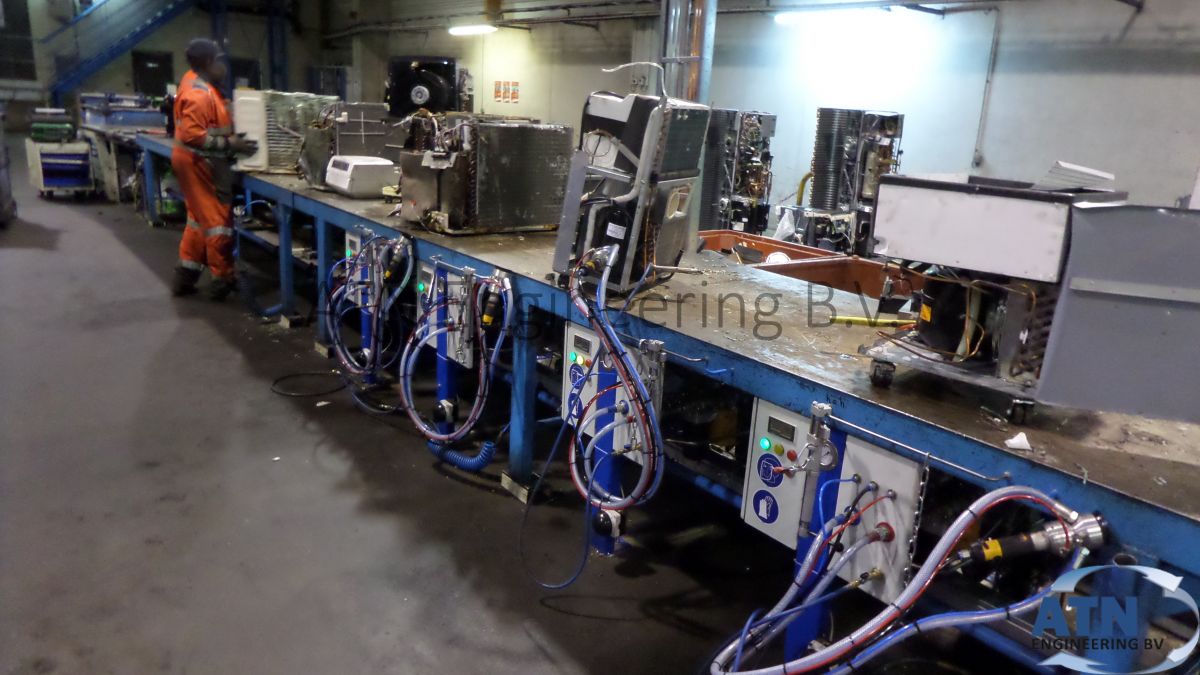

Drain place with four drill-heads and piercing-pliers that drain refrigerators and fridges.

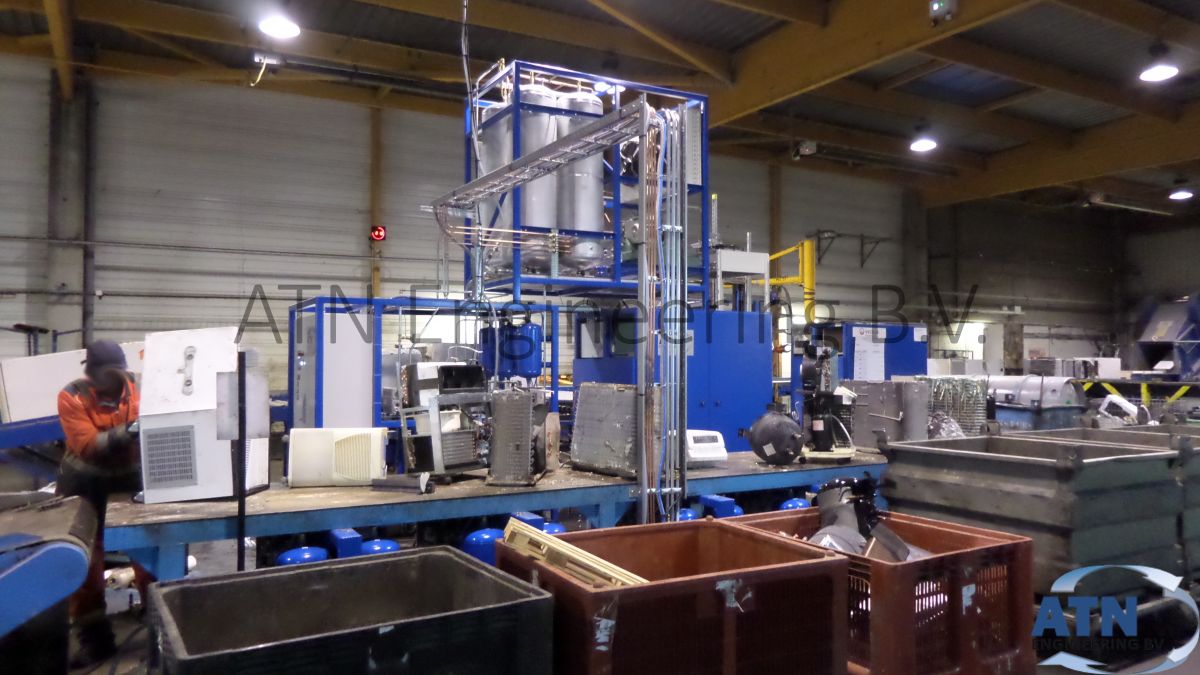

Roller conveyors with airco's and fridges

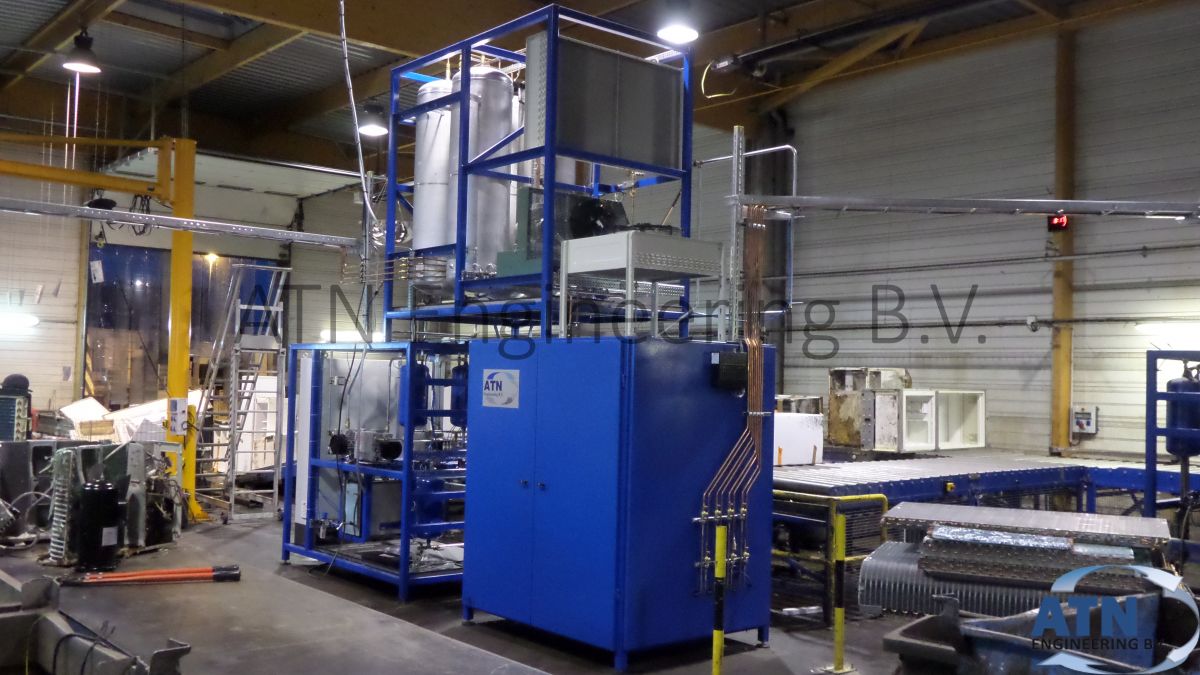

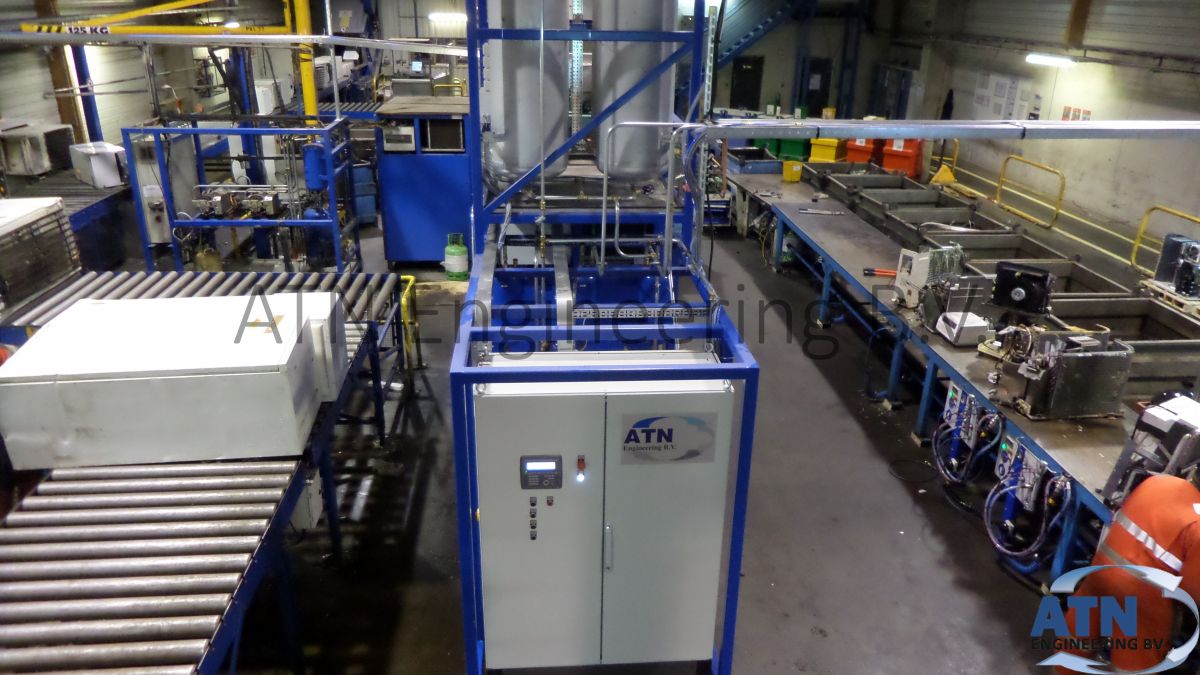

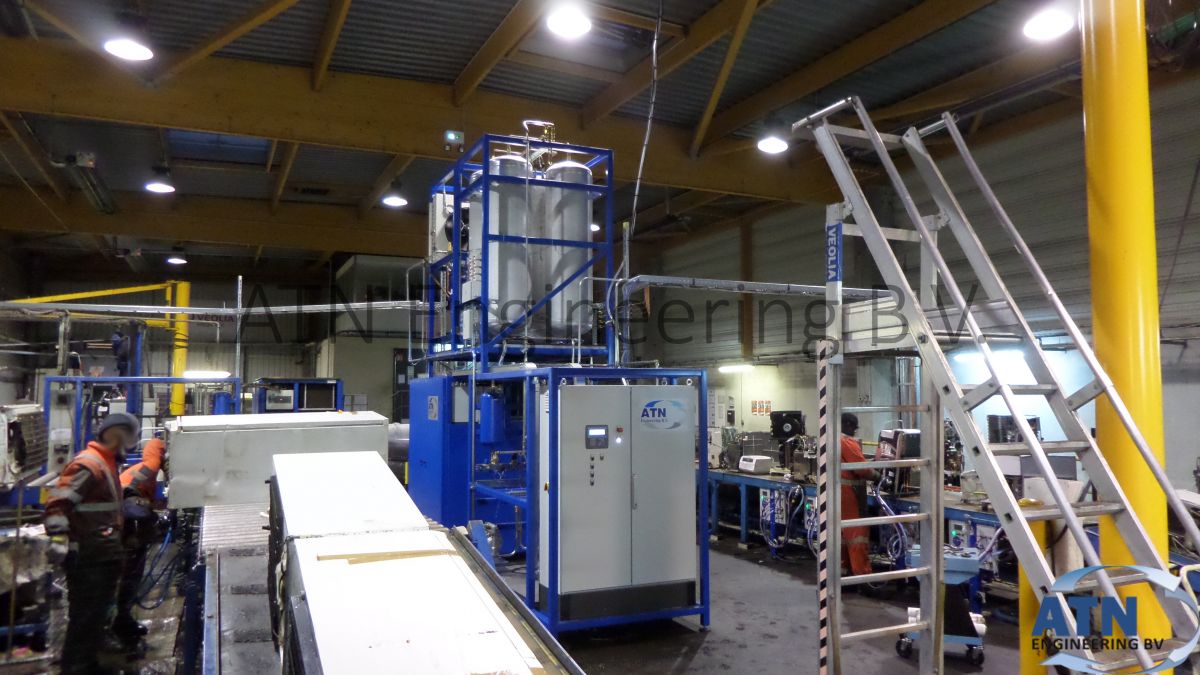

Air-conditioning front show with roller conveyors
Air-conditioning sideshow
Air-conditioning machine sideshow
Air-conditioning machine sideshow

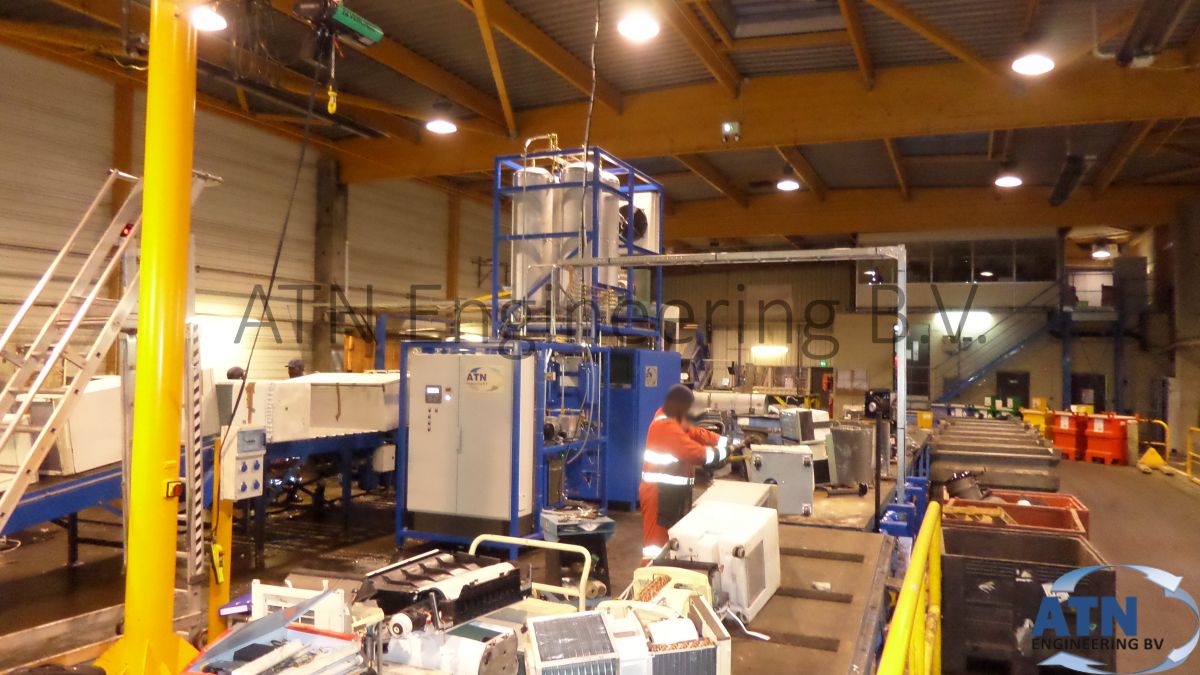

Air-conditioning recycling machine the biggest ever!
Air-conditioning machine
Draining refrigerators and Airco's

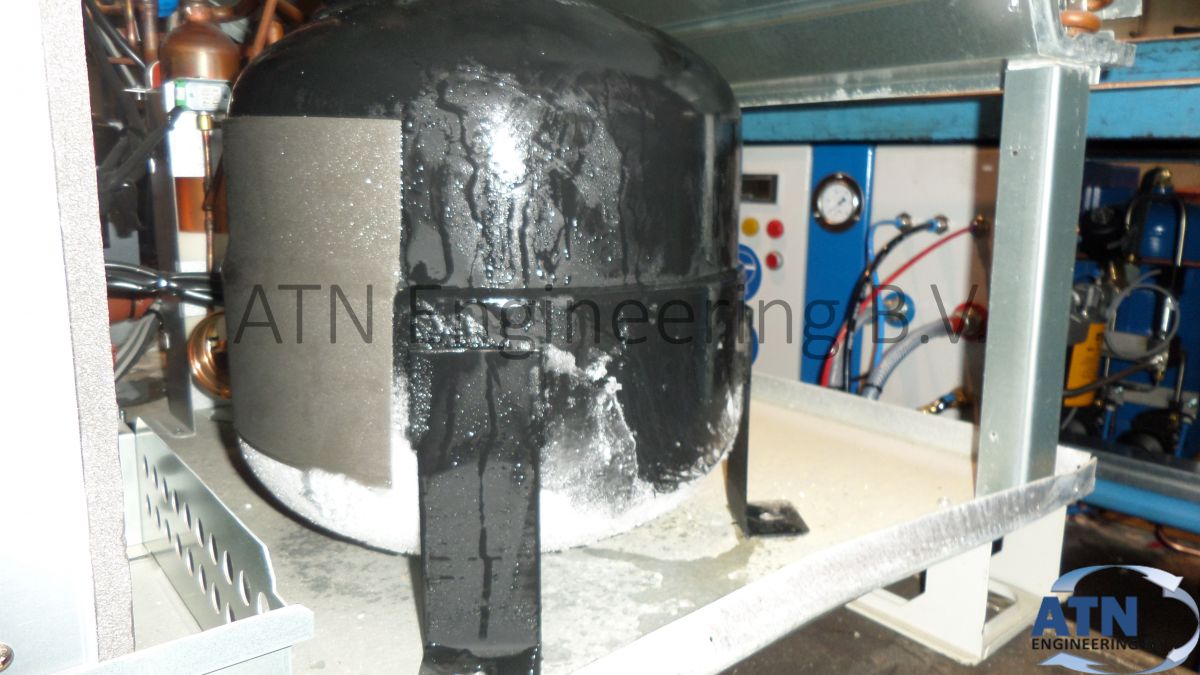

Draining a air-conditioning unit. While we drain such a unit you see that freezes itself because of the cooling liquid inside.

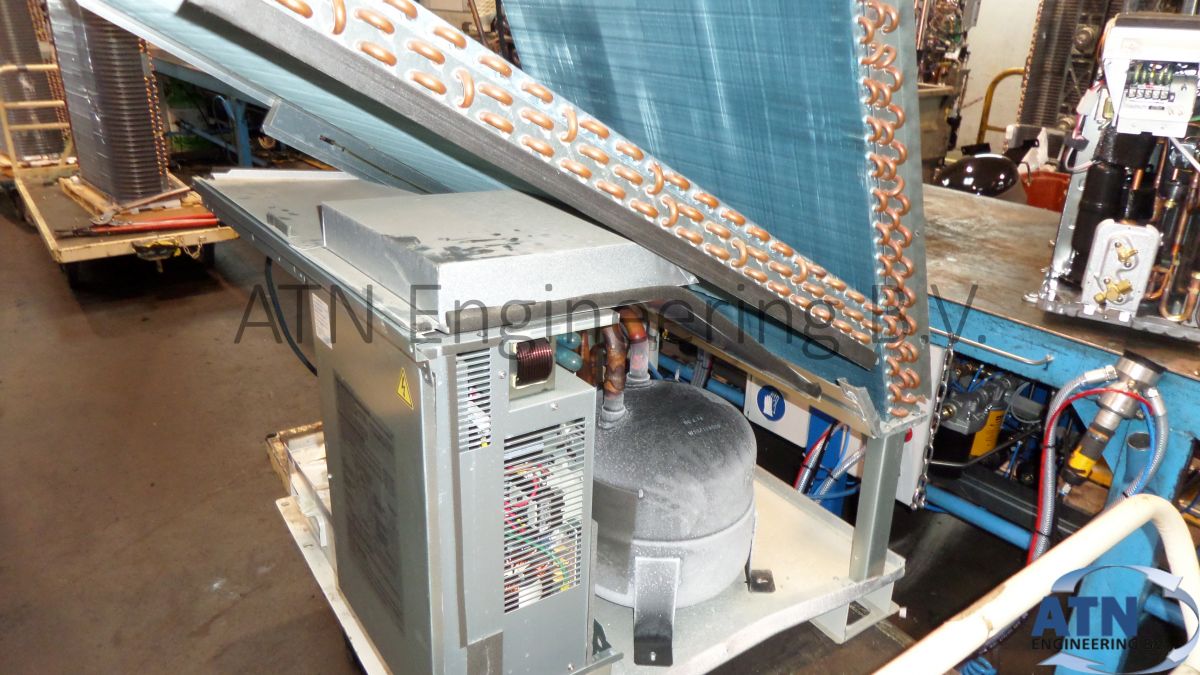

Situation after draining a airconditioning unit.
Airco's compressors that are drained with an ATN machine

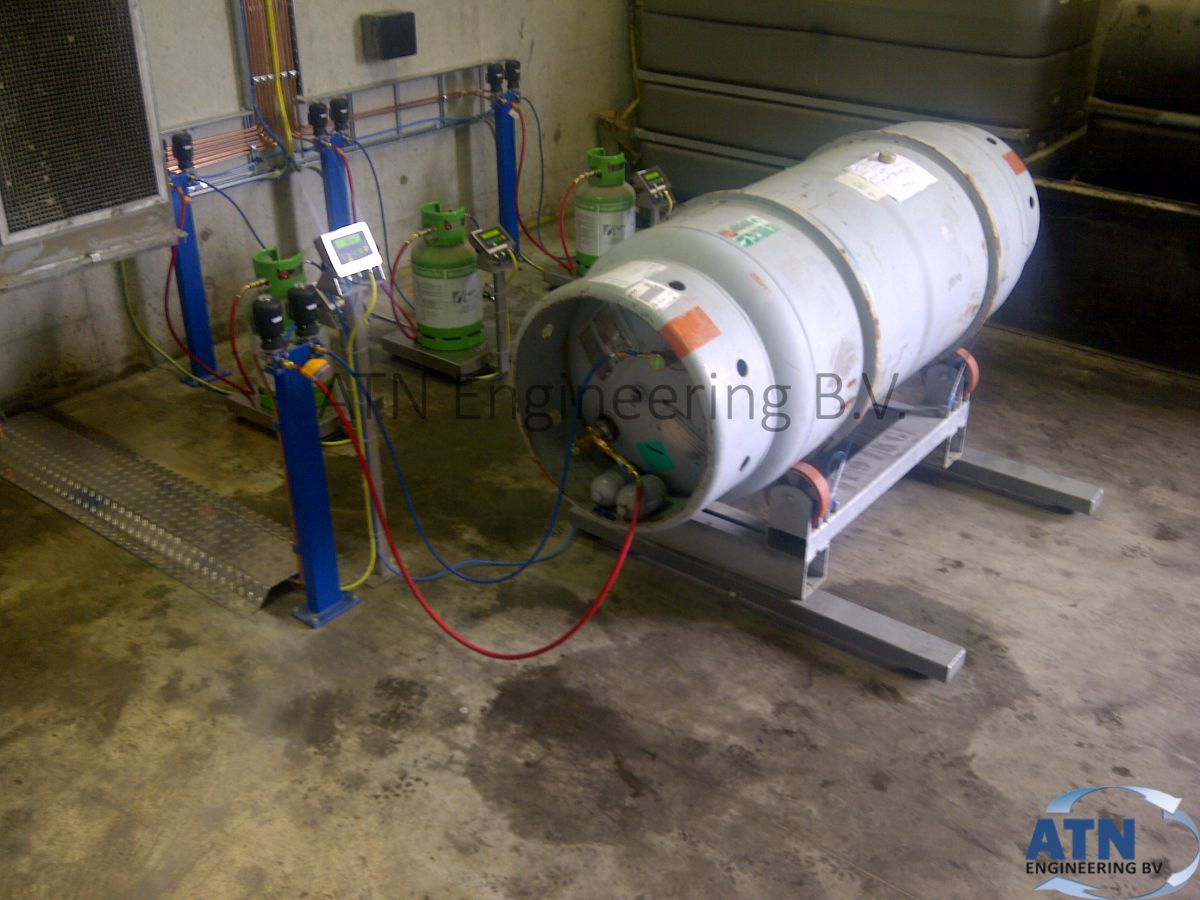

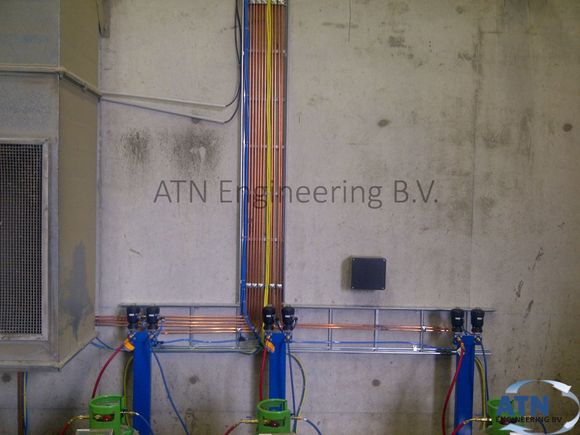

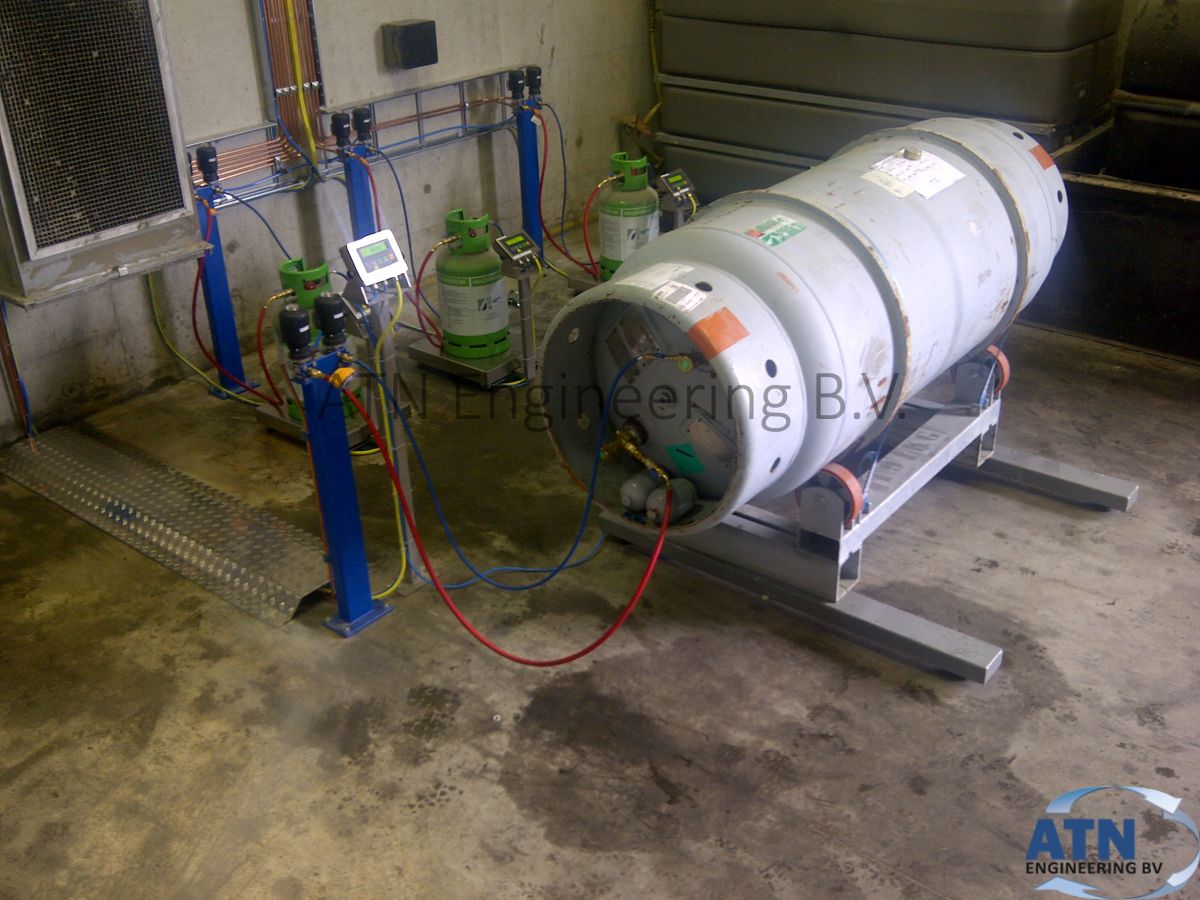

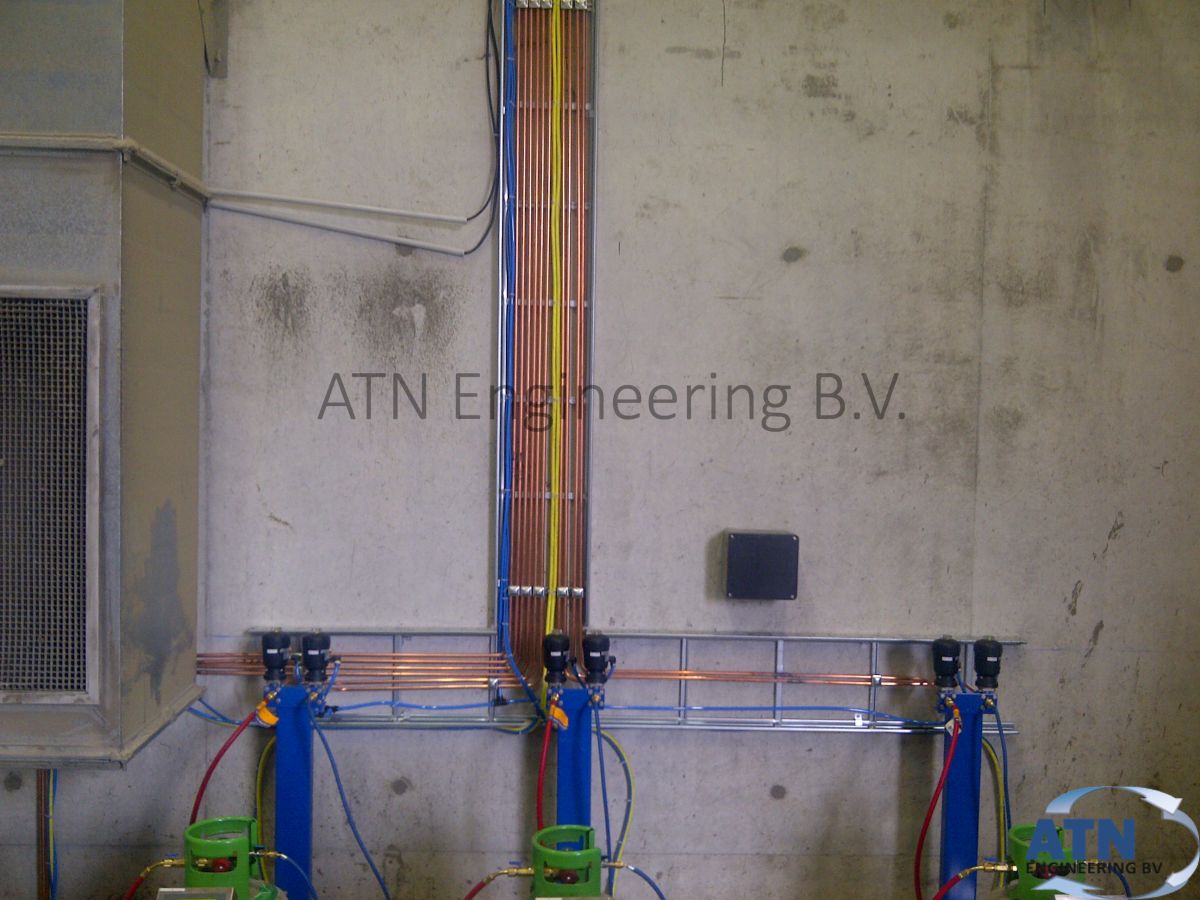

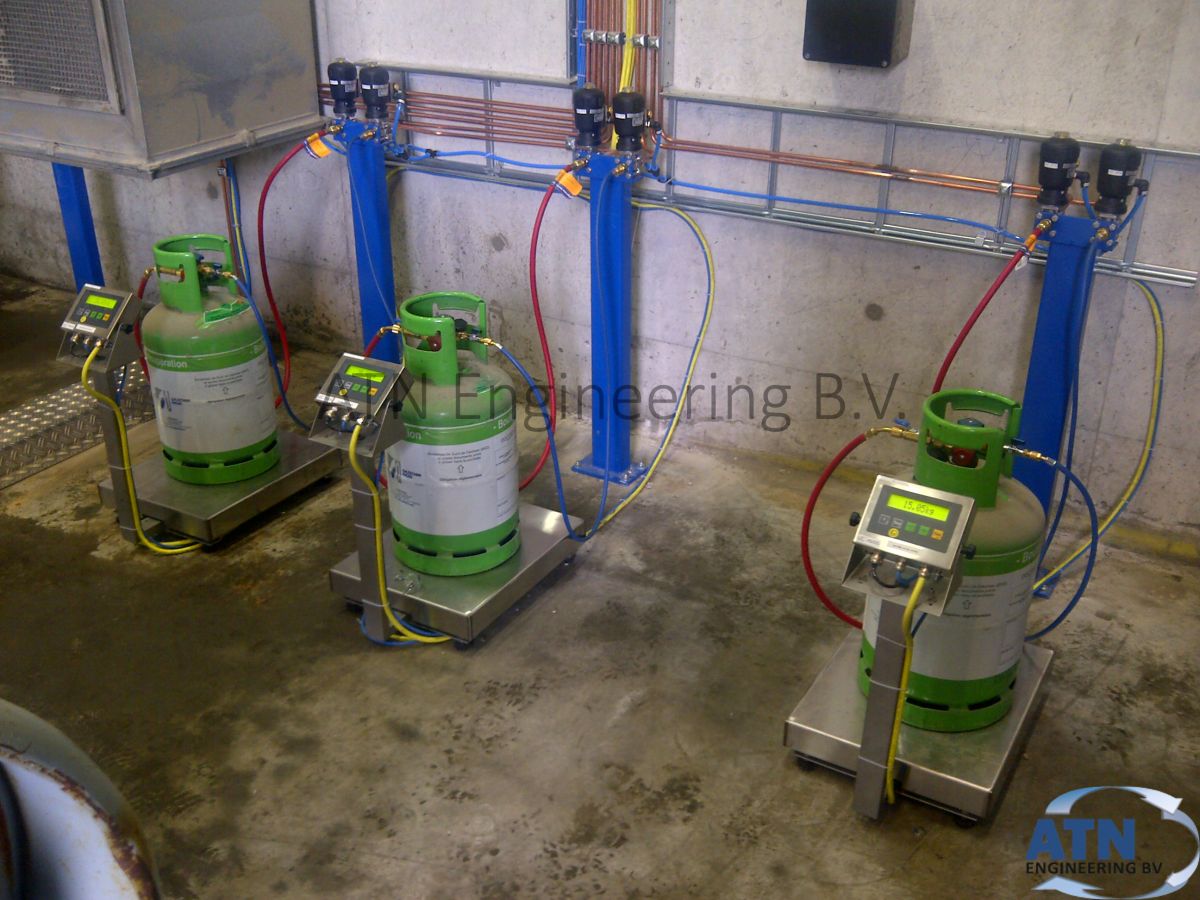

The liquid and gas will be separted and stored in these tanks.

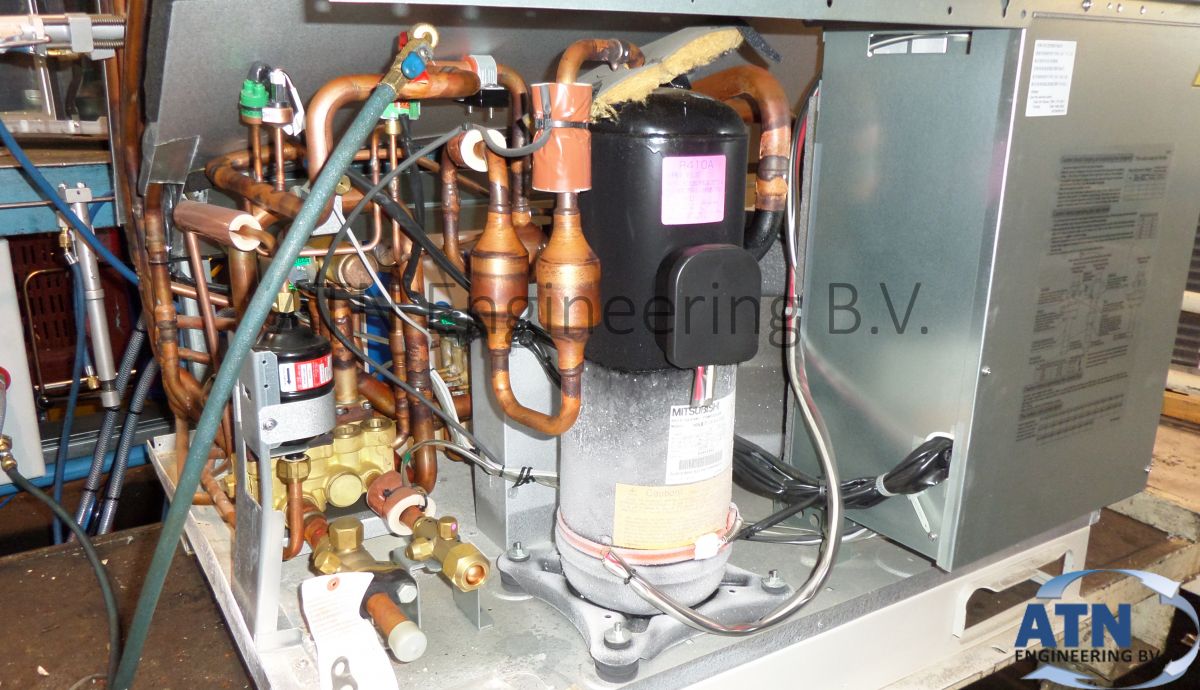

Recycling an air-conditioning compressor

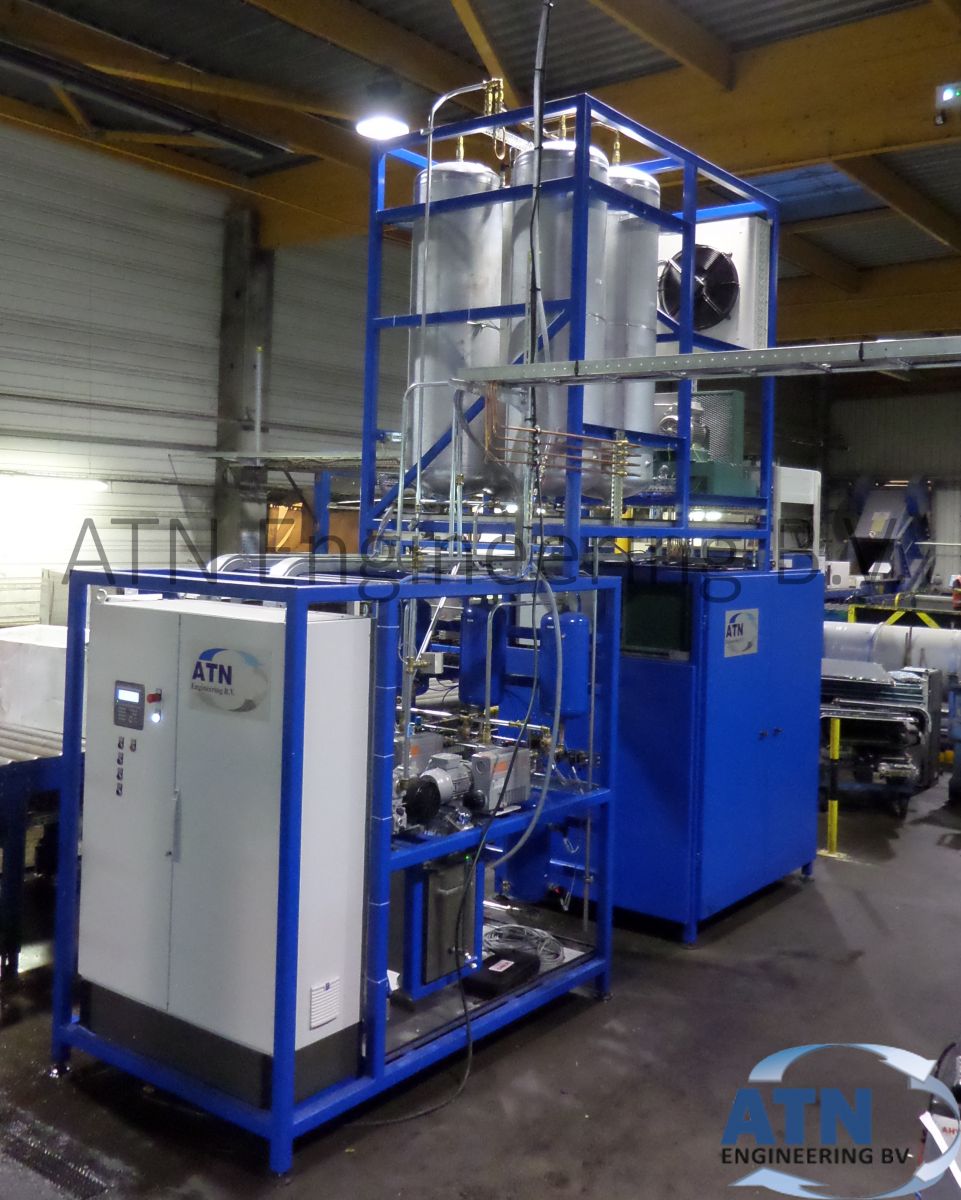

Air-conditioning recycling machine
The liquid and gas will be separted and stored in these tanks.
The liquid and gas will be separted and stored in these tanks.
The liquid and gas will be separted and stored in these tanks.
The liquid and gas will be separted and stored in these tanks.

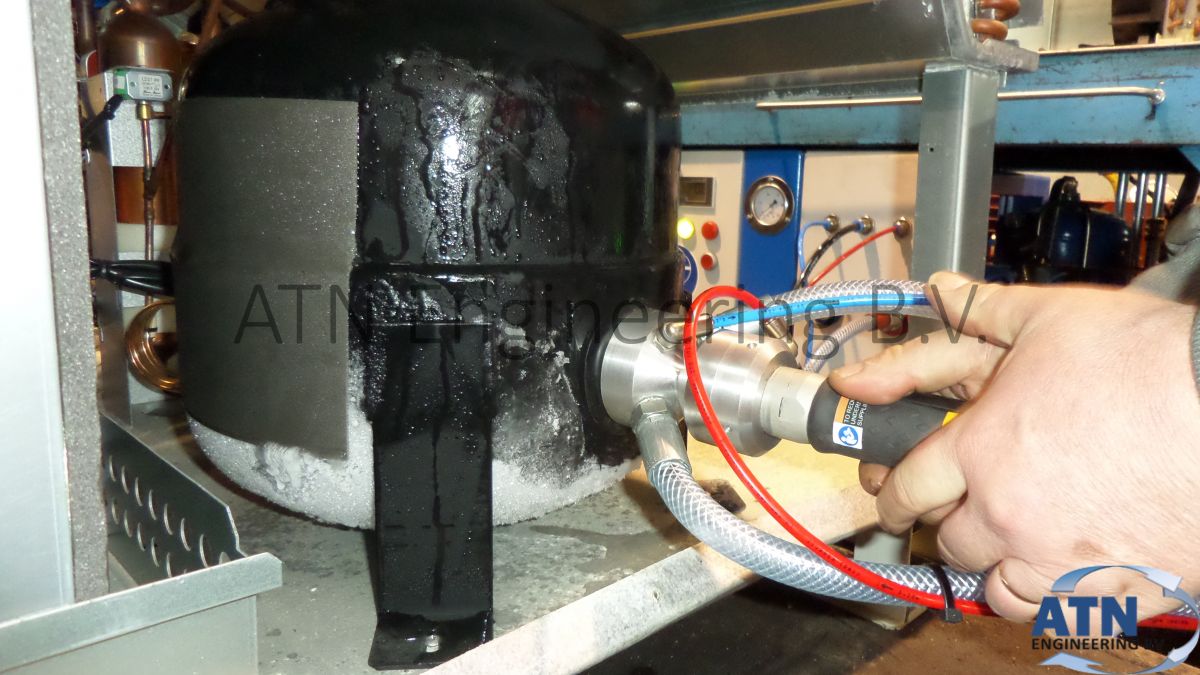

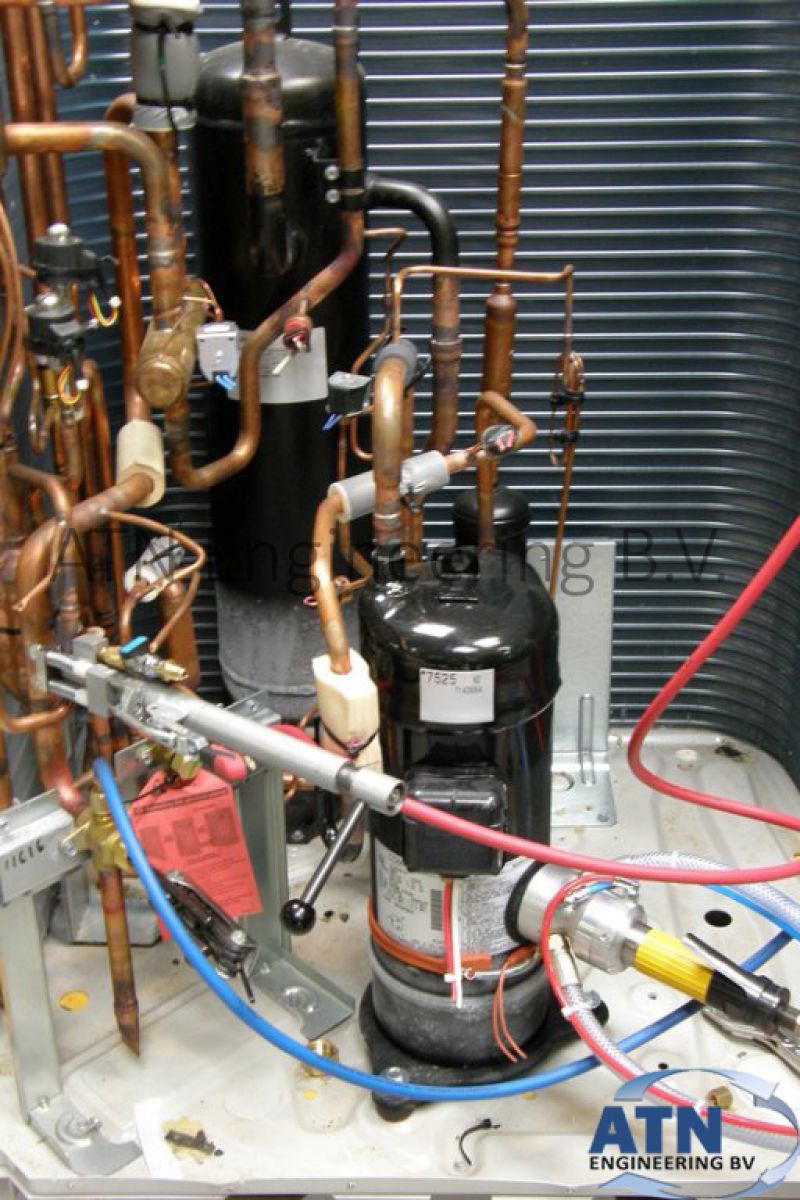

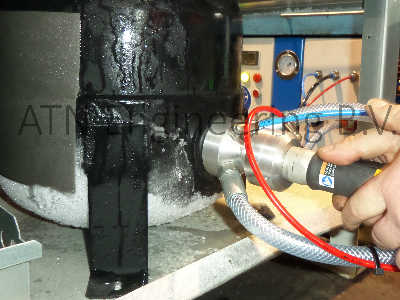

Draining a air-conditioning compressor with a piercing-plier and drill-head
